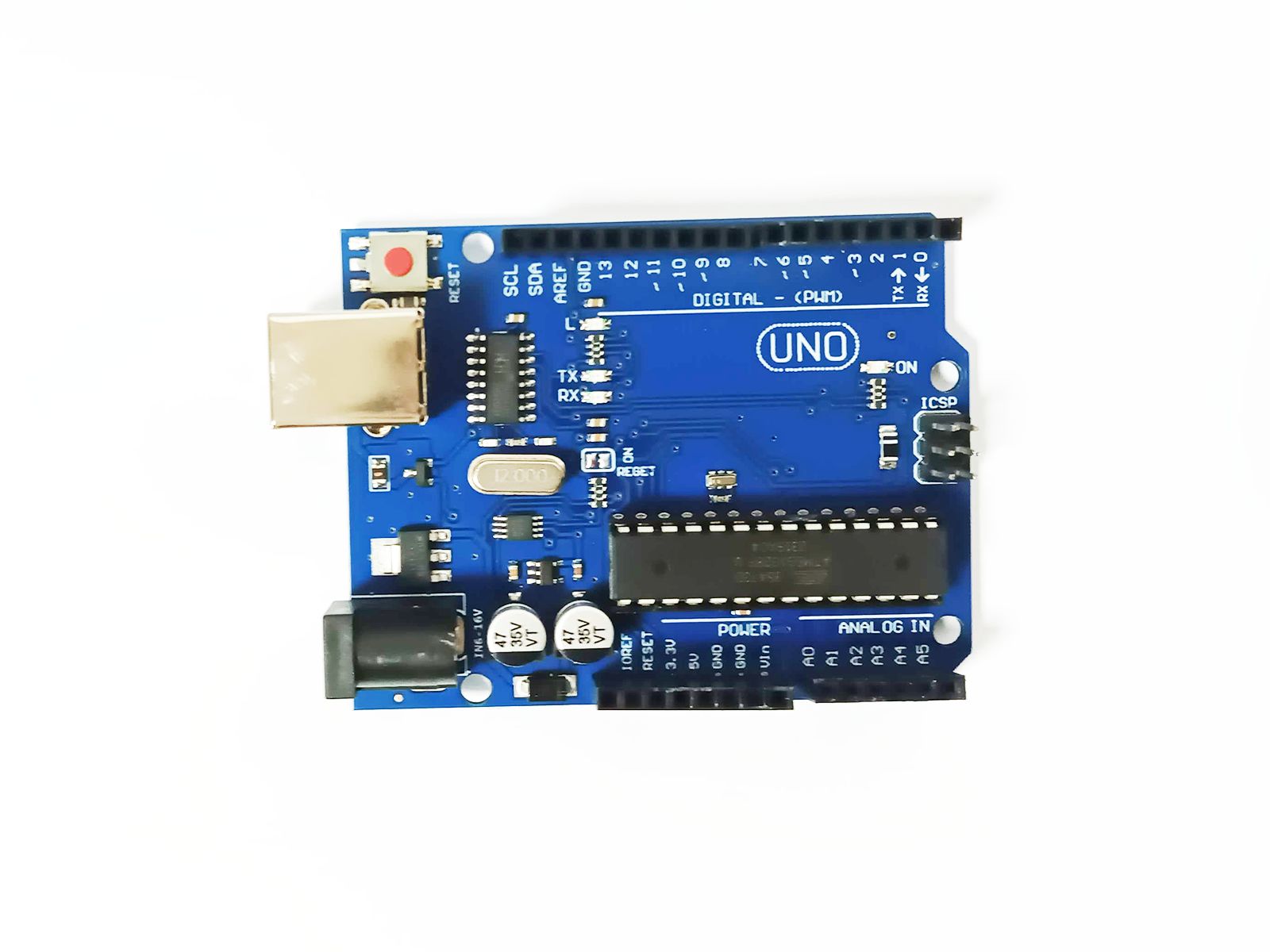

Uno R3 CH340G ATmega328p Development Board Arduino DIP

SKU: LOR005553

Product Highlights:

  • Microcontroller ATmega328 (DIP) Arduino compatible? Interface CH340
  • Operating Voltage: 5V
  • Input Voltage (recommended): 7-12V
  • Input Voltage (limits): 5-20V
  • Digital I / O Pins 14 (of which 6 provide PWM output)
  • Analog Input Pins: 6

Land of Robots Shopping Event | New Year Flash Sale

Hurry and get discounts on all Robotics Components  up to 20%

Sale_coupon_20

707.00

19 People watching this product now!
  • Pick up from the Land of Robots Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

Features:-

Uno R3 CH340G ATmega328p Development Board is the low-cost version of the popular UNO R3 Arduino. It is assembled with the CH340 USB to Serial converter chip, instead of using an Atmega16U2 chip.

after researching of plenty of these low-cost Arduino boards with CH340 chips, it has been found to work perfectly. The only time the CH340 chip is used is during programming and when using the serial output of the USB port. During normal operation, this board is identical to the more expensive version without CH340 chip.

Specifications and Features:-

  • Microcontroller ATmega328 (DIP) ? Interface CH340G
  • Operating Voltage: 5V
  • Input Voltage (recommended): 7-12V
  • Input Voltage (limits): 5-20V
  • Digital I / O Pins 14 (of which 6 provide PWM output)
  • Analog Input Pins: 6
  • DC Current per I Pin: 40 mA
  • DC Current for 3.3V Pin: 50 mA
  • Flash Memory: 32 KB (ATmega328) of which 0.5 KB is used by the bootloader
  • SRAM: 2 KB (ATmega328)
  • EEPROM: 1 KB (ATmega328)
  • Clock Speed: 16 MHz
